Installing auxiliaries belt:
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLVO CARS OF NORTH AMERICA.

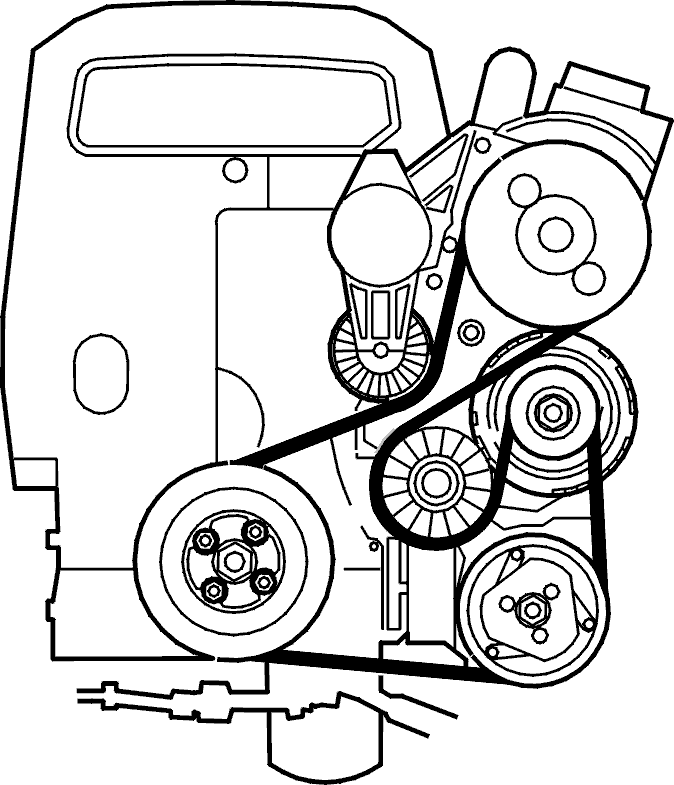

Put the belt around the crankshaft and then around the auxiliary equipment in the following order:
- A/C compressor
- generator (GEN)
- idler pulley
- servo pump
