Removing the transmission

WARNING: This page is about a different variant/trim than selected.

Special tools:

9985972

9995006

9995033

9995045

9995460

9995462

9995463

9995488

9995562

9995563

9995638

9995972

NOTE: The illustrations in this section show LHD versions. RHD versions are shown only where they differ.

Shift the gear selector lever to neutral

Removing engine compartment components

Fig 1: Identifying Engine Cover, Battery, Air Cleaner (ACL) Housing And Charge Air Pipe Hose
GLL126102Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove the clamp for the charge air pipe and the hose from the pipe.

Removing the transmission cable and connector

Fig 2: Identifying Gear Selector Cables, Outer Transmission Lever And Back-Up (Reversing) Light Switch Connector
GLL126120Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Removing the torque control arm

Fig 3: Identifying Torque Control Arm/Torque Rod Screws And Transmission/Engine Screws
GLL126103Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Slacken off the nut for the rear engine pad/splash guard a few turns.

Removing the clutch cable

See Removing the clutch cable .

Installing the lifting hook

Fig 4: Identifying Lifting Hook
GLL126121Courtesy of VOLVO CARS OF NORTH AMERICA.

Install lifting hook 9995638 .

Remove the two manifold nuts. Leave the washers in place.

Install the lifting hook in the mounting eyelet, and the two nuts.

Lift of the engine coolant expansion tank from the mounting and put it to one side.

Installing lifting tools

Fig 5: Identifying Lifting Hook 9995460
GLL126112Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Note the distance between the lifting beam and the valve cover.

Removing the front wheels and the ABS sensor

See Removing the front wheels and the ABS sensor .

Removing the drive shaft screw

See Removing the drive shaft screw .

Removing the splash guards

Fig 6: Identifying Front Splash Guard
GLL109151Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Disconnecting the control arms from the stub axles

See Disconnecting the control arms from the stub axles .

Removing mounting screws and holders

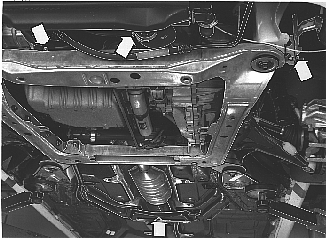

Fig 7: Identifying Mounting Screw For Cable Conduit On Sub-Frame
GLL126122Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove:

Removing the screwed joint

See Removing the screwed joint .

Removing the collision protection system over the steering gear (right-hand drive cars only)

See Removing the collision protection system over the steering gear (right-hand drive cars only) .

Removing the right drive shaft

See Removing the right drive shaft .

Removing the screw for the front engine pad in the sub-frame

See Removing the screw for the front engine pad in the sub-frame .

Removing the sub-frame screws

See Removing the screws for the sub-frame .

Preparatory lowering of the sub-frame (applies only to right-hand drive cars only)

See Preparatory lowering of the sub-frame (applies only to right-hand drive cars only) .

Lowering the sub-frame

See Lowering the sub-frame .

Hanging up the steering gear in the left-hand side

See Mounting the steering gear on the left-hand side in the hole in the frame member flange .

Removing the cover and engine mounting

Fig 8: Identifying Rear Engine Mounting Cover And Rear Mounting
GLL126124Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Removing the left drive shaft

See Removing the left drive shaft .

Lowering the engine and the transmission

Fig 9: Identifying Lifting Hook
GLL126113Courtesy of VOLVO CARS OF NORTH AMERICA.

Use lifting hook 9995460 . Lower until the distance between the lifting beam and the valve cover is approximately 290 mm  .

NOTE: If the engine is lowered too much, the exhaust pipe may press the steering gear down.
NOTE: Ensure that no cables and hoses are trapped or stretched.

Installing universal tool and transmission fixture

See Installing fixtures and the mobile jack .

Removing the starter motor Torx screw

Fig 10: Identifying Starter Motor Torx Screw
GLL126118Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosely reinstall the screw through the starter motor and the cylinder block. This is to hold the starter motor in position.

Remove the remaining screws between the transmission and the engine.

Removing the transmission

See Removing the transmission .
