Installing the remaining screws on the gearbox and starter motor
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLVO CARS OF NORTH AMERICA.

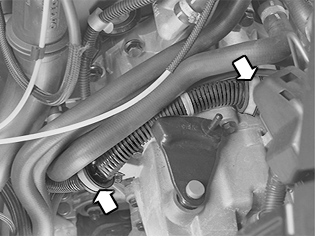

Install:
- the screws for the gearbox and engine. Tighten to 50 Nm
- the screws for the clamps for the wiring.
