Installing the clutch pipe on the junction

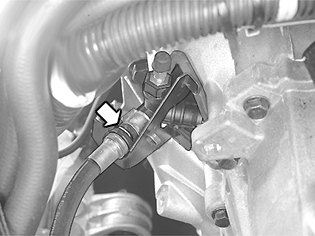

Fig 1: Identifying Clutch Pipe Junction Retaining Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the clutch pipe on the junction. Use a new seal. Ensure that the clip is seated in its groove.

Remove the hose clip.

Bleed the clutch

It may be difficult to bleed the pressure regulator. Use a bleeding unit.

Use only Volvo Genuine parts brake fluid DOT 4+.
