Removing the charge air pipe

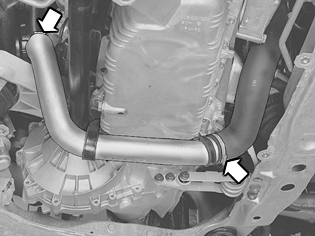

Fig 1: Identifying Charge Air Pipe Hose Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 hose clamps for the charge air pipe under the engine.

Remove the 3 screws on the gearbox for the charge air pipe mounting.

Separate and remove the pressure pipe.

Remove:

• the screws for the torque rod from the gearbox
• the screw for the front engine mounting.
