Checking Fuel Supply To the Fuel Pump (FP)
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.

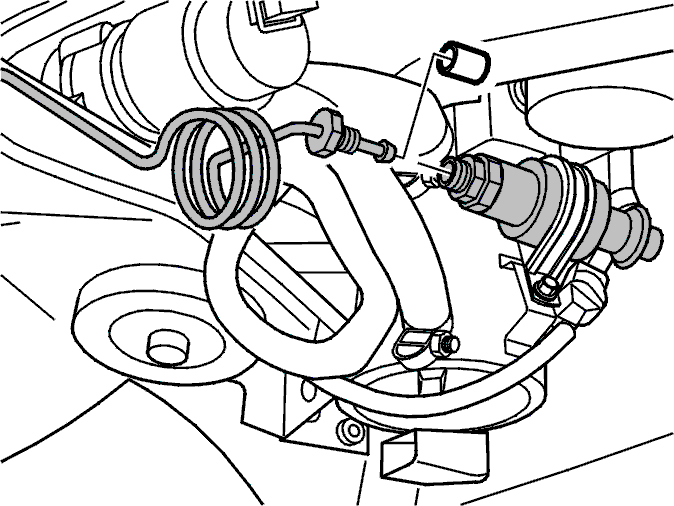

- Position a container under fuel pump (FP).
- Disconnect fuel line from fuel pump (FP) according to Preparations
Check if fuel comes out of fuel line. The fuel in the fuel filter may spill out.
If there is no fuel there is a fault in the fuel line to the fuel pump (FP).
Remedy as necessary.
Was a fault detected?
- YES
Refer to Verification
- NO
Refer to Checking Fuel Supply To the Heater
