Checking Fuel Supply To the Heater

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition on.
Position a container under fuel pump (FP).
Move heater to service position according to Moving the Heater To Its Service Position .
Disconnect fuel hose at fan shroud.
Reinstall heater except for fuel line at the fan shroud. It should hang straight down.
Activate heater.
Check if fuel comes out of fuel hose. If fuel comes out the heater should be deactivated.

If no fuel comes out of the fuel line the fuel pump (FP) should be replaced according to Replacing Fuel Pump .

Fig 2: Identifying VCT2000
Courtesy of VOLVO CARS OF NORTH AMERICA.

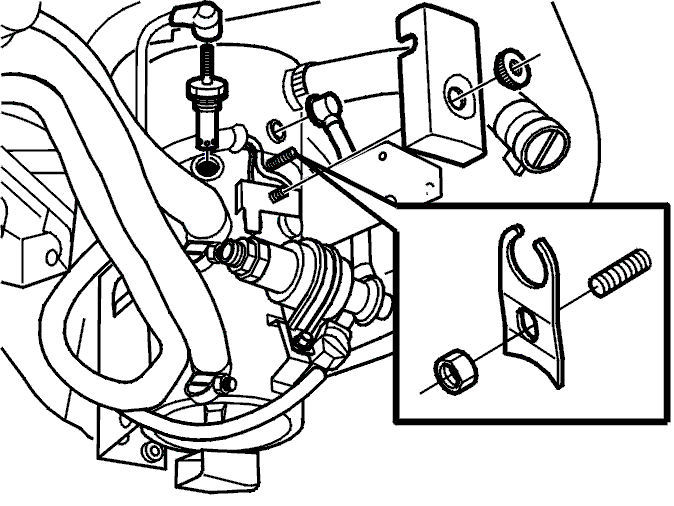

Fig 3: Identifying Fuel Line Quick-Release Connector, Coolant Temperature Sensor And Overheat Protection Thermostat Cover
Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

YES
Refer to Verification
NO
Refer to Checking Nozzle Pipe
