Checking fuel pump (FP)

WARNING: This page is about a different car, the 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Fuel pump (FP) disconnected (connector C/BA).

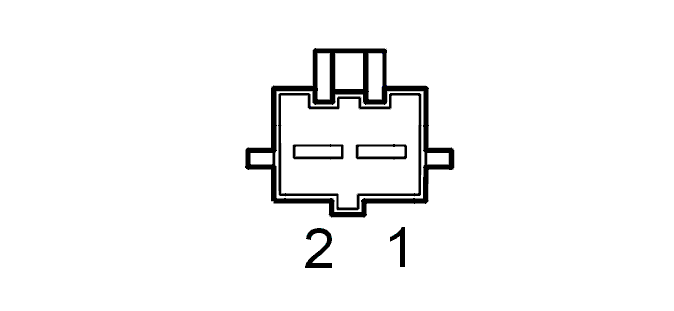

Fig 3: Identifying Fuel Pump Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Ohms Display
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Connect an ohmmeter between fuel pump (FP) connector terminals 1 and 2 (fuel pump (FP) side).

The ohmmeter should read 0.5 - 2 Ω.

OK
Refer to Checking for an open-circuit
NOT OK
Refer to Replacing fuel pump
