Seat Belt (Inertia) Reel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

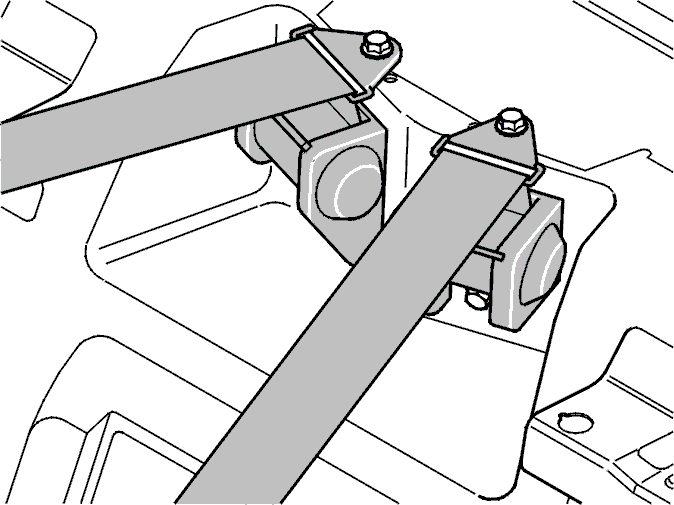

Fig 1: Identifying Seat Belt Reel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the parcel shelf according to Parcel Shelf .
the 4 screws for the seat belt reel.

Installation

Tighten the upper screws for the belt to 48 Nm (35 lb.ft) .

See the instructions for the sound system when installing the parcel shelf. See Loudspeakers .
