Seat Belt (Inertia) Reels And Seat Belt Tensioners
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
After a collision replace both the seat belt tensioners, seat belts and seat belt buckles. This applies even if no-one was sitting in the passenger seat.
WARNING:
The battery must not be connected when the ignition cable connector is being removed or installed.

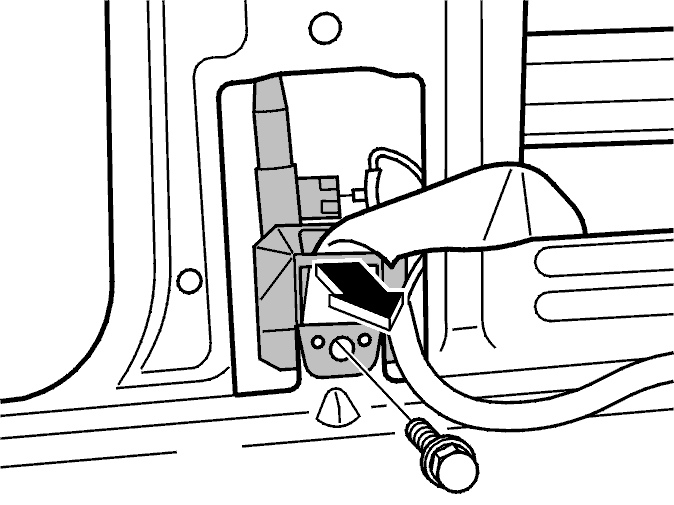

Installation
Tighten the screw to 48 Nm .
WARNING:
Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non-deployed seat belt tensioner. This could deploy it.
WARNING:
The seat belt tensioner must never be taken apart, repaired or moved to another vehicle. For handling replaced the seat belt tensioner, see Handling Replaced SRS Airbags/Seat Belt Tensioners .
To replace the seat belt buckle, see Front Seat Belt Buckle .
