Connecting the Breakout Box To the ECC Control Module

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

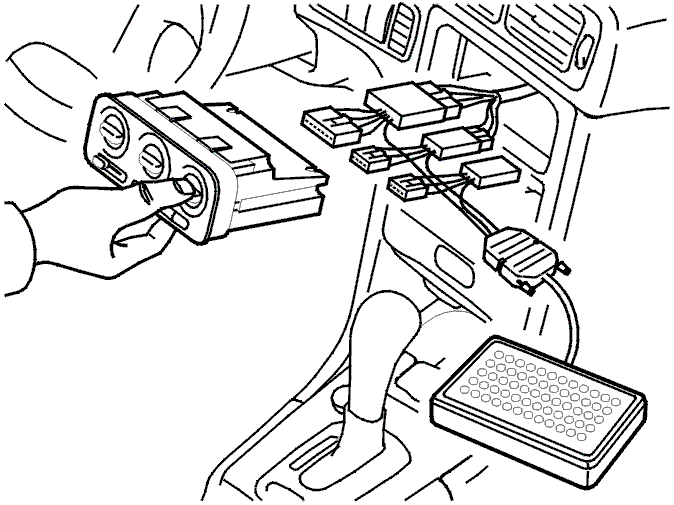

Fig 1: Identifying ECC Control Module And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Expose ECC control module according to Replacing ECC Control Module .
Disconnect control module.
Check the control module and control module connectors for damage to the pins in the male and female connectors and that none of them are loose (cannot be pushed inward), also check that cables to the female pins are correctly attached to the cable terminal.
Check the terminals relevant to the diagnostic trouble code (DTC)/symptom especially well. See Signal Specification ECC .
Connect adapter 9813194 (30-pin and 10-pin terminal) to the control module connector (towards the wiring) and connect breakout box 9813190 to adapter.
HINT: Control module terminals #A1-#A30 is equivalent to #1-#30 on the on the breakout box and #B1-#B10 is equivalent to #47-#56 on the breakout box.
The breakout box is designed to make it easier to take input/output signal readings with the control module still connected and also to test the resistance of the cables and components when the control module is disconnected. Using the breakout box reduces the risk of accidentally short-circuiting cables or damaging terminals in the connectors.
