Replacing "rake switch": Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

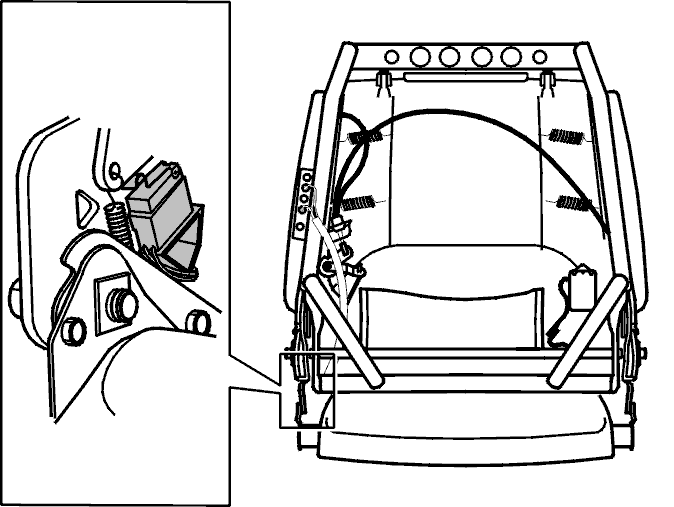

Fig 1: Identifying Micro-Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out preparations according to:Preparations

Fold the backrest forward.

NOTE:

Check positioning of the switch before removing.

Cut off cable ties.

Detach switch from the seat.

Disconnect connector.

Replace switch.

Install in reverse order.
