Fault-tracing and programming using the Volvo Scan Tool (ST): Preparation: Preparations

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The entry position cannot be programmed using Volvo Scan Tool (ST) on control modules with P/N 8651558. The service is not available on the Volvo Scan Tool (ST) for these control modules. Calibrate manually instead. See Manually programming entry position

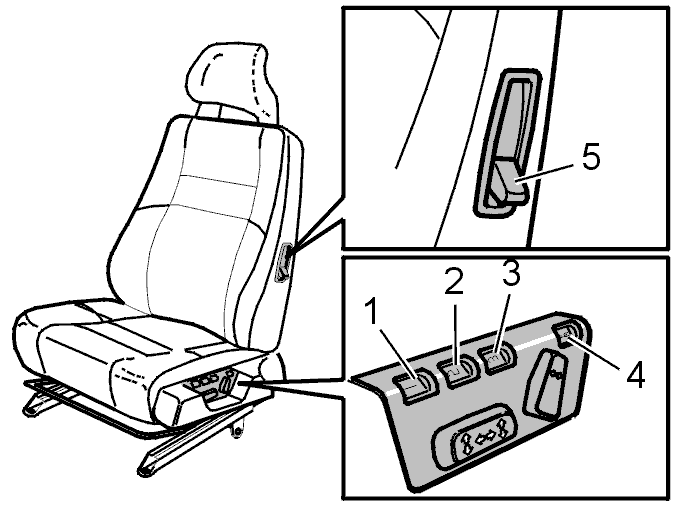

Fig 1: Identifying Power Seat Switches And Backrest Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust the front-rear position of the seat to the most forward position using the control button or the Volvo Scan Tool (ST)
Move the seat backward approximately 5 mm.
