Drive shaft under seat, replacement: Replacing: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

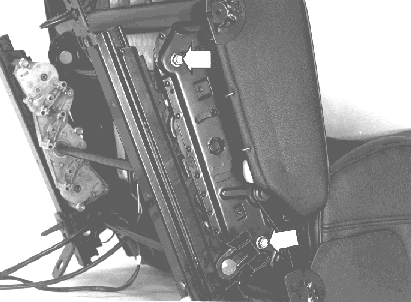

Fig 1: Identifying Bracket Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti-theft coded radio is installed.

Remove:

Battery negative lead.
Seat from car according to Seat removal .
The control module from the bracket. Control module, replace .
The control module bracket.
Mark up motors.
Motors 1, 3 and 4 in accordance with Motors and potentiometers underneath seat, replace .
The screws from the height adjuster. See illustration above.

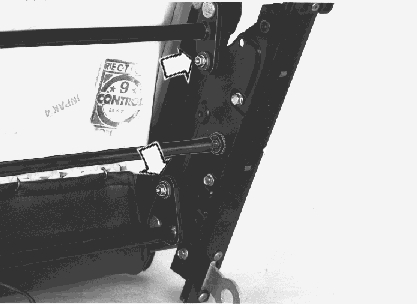

Fig 2: Identifying Seat Frame Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws from the seat frame. See illustration above.

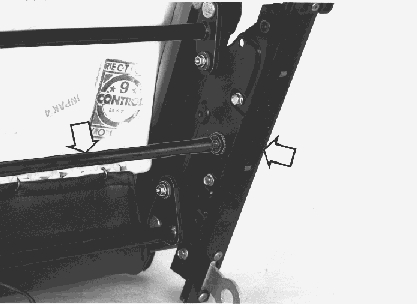

Fig 3: Identifying Drive Shaft Between Drive Gear And Seat Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat rails from the seat frame.
Remove the drive shaft between drive gear and seat rail.

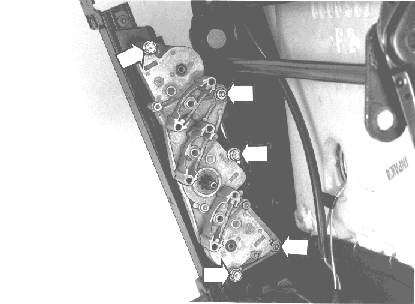

Fig 4: Identifying Drive Gear, Screws, And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the three screws and two nuts fro the drive gear.
Remove the drive gear from seat rail.
