Drive shaft under seat, replacement: Replacing: Installing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

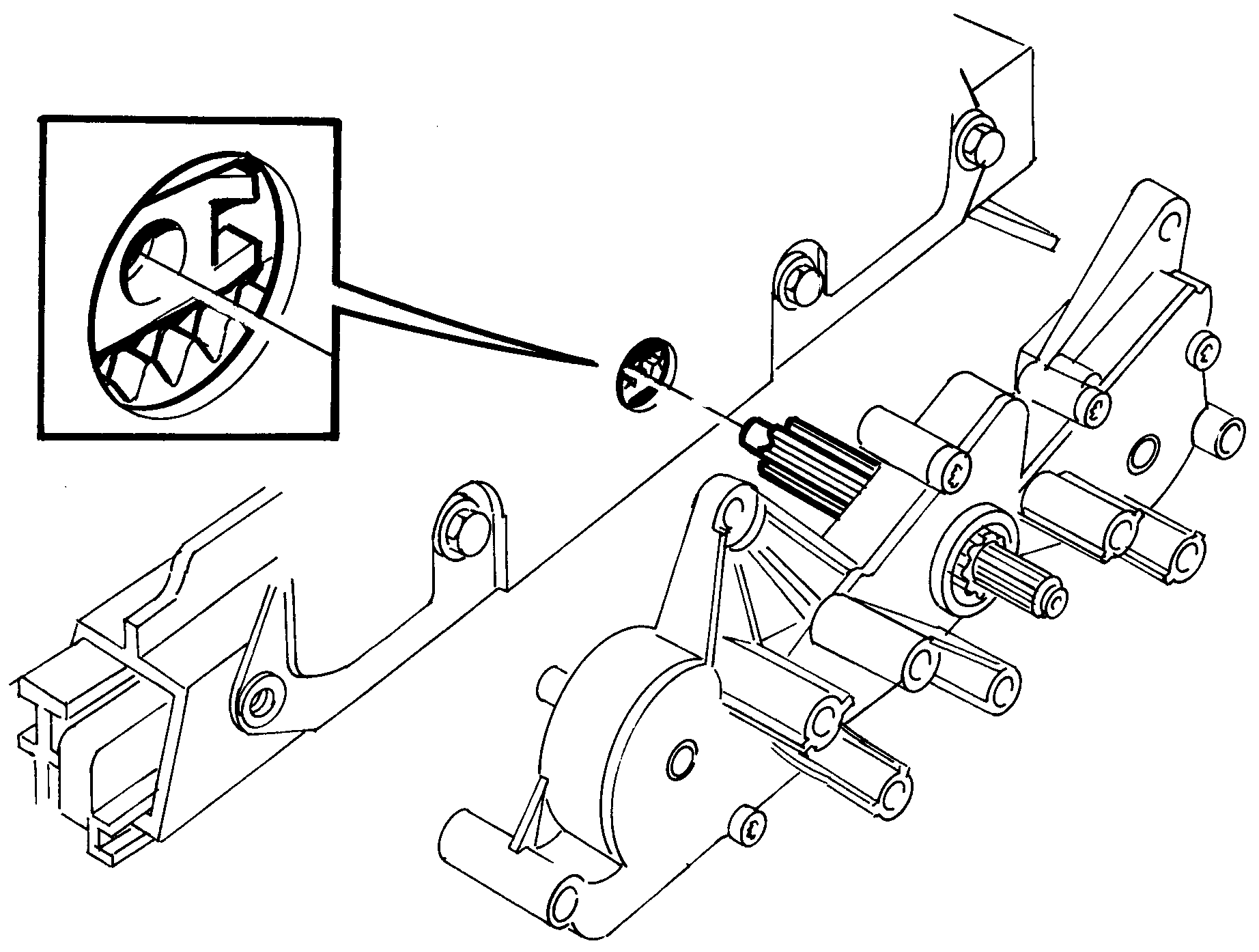

Fig 1: Identifying Toothed Shaft Of Drive Gear And Hole In Sliding Block

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall drive gear.

When installing the drive gear, make sure that the toothed shaft of the drive gear is inserted in the hole in the sliding block on the slide rail.

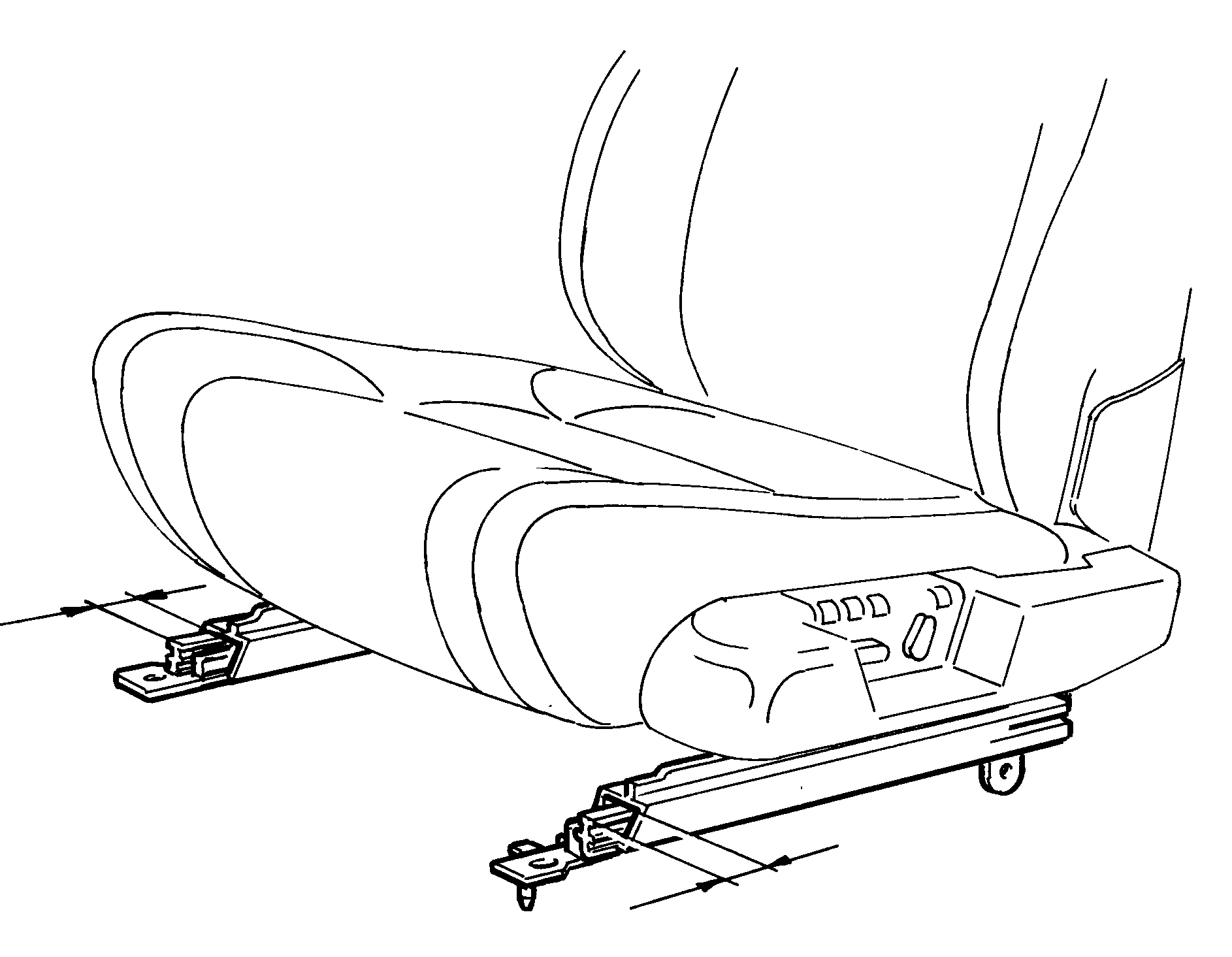

Fig 2: Identifying Position Of Seat Rails

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the seat rails are in the same position. See illustration above.
NOTE:
The seat rails must be in the same position otherwise the seat will not align properly in the car.
Drive shaft and seat rail.

Continue reinstalling the remaining components in reverse order to which they were removed.
