Control panel replacement: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

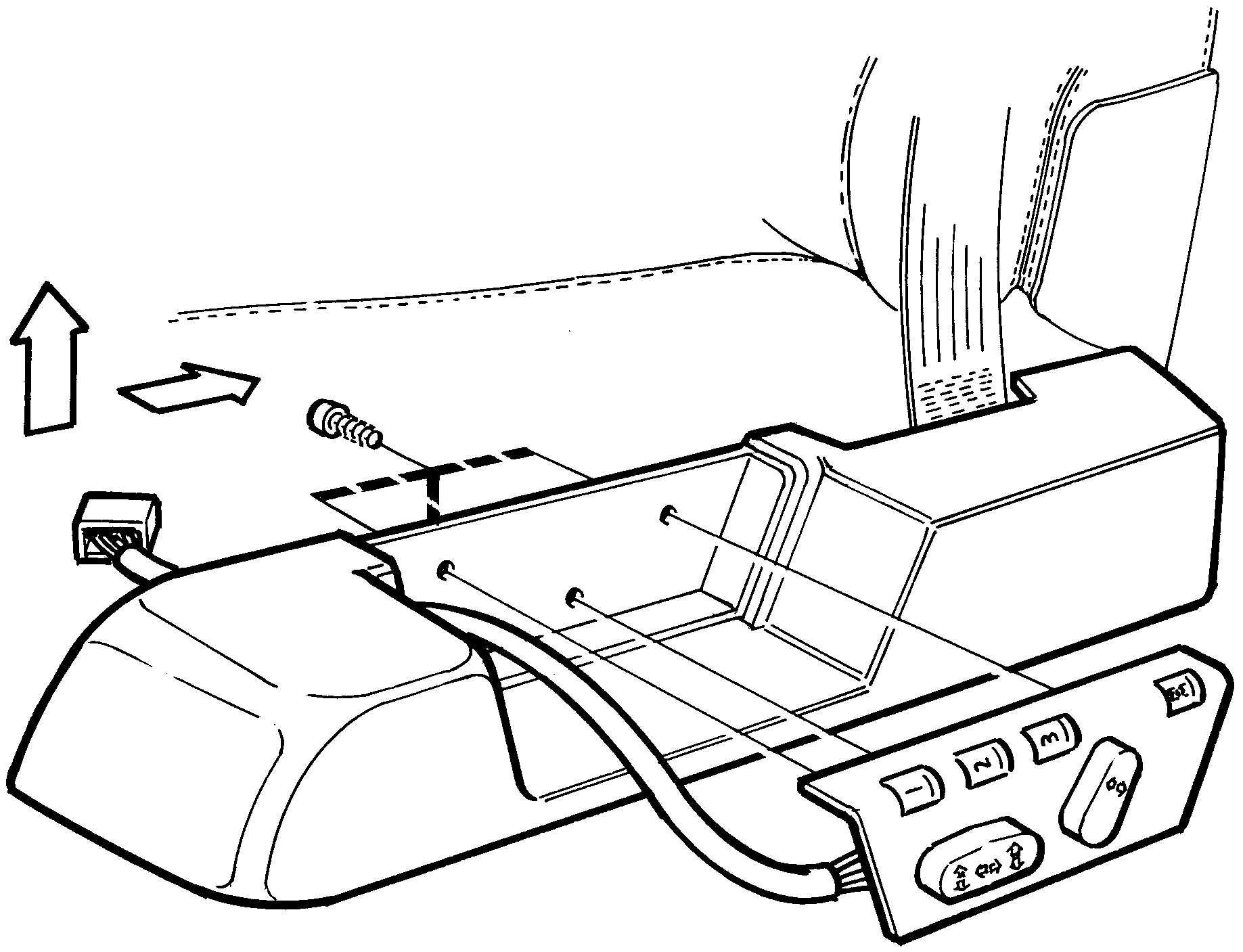

Fig 1: Identifying Side Compartment And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti-theft coded radio is installed.

Remove:

Battery negative lead.
The 4-pin connector from control module (underneath the front edge of the seat).
Side storage compartment from the seat. Raise forward end and push back.
The three screws on the back of the side compartment.
