Foam filling with linked front-rear channels, two lateral channels and a design channel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

(The channels are used to secure upholstery to the foam filling).

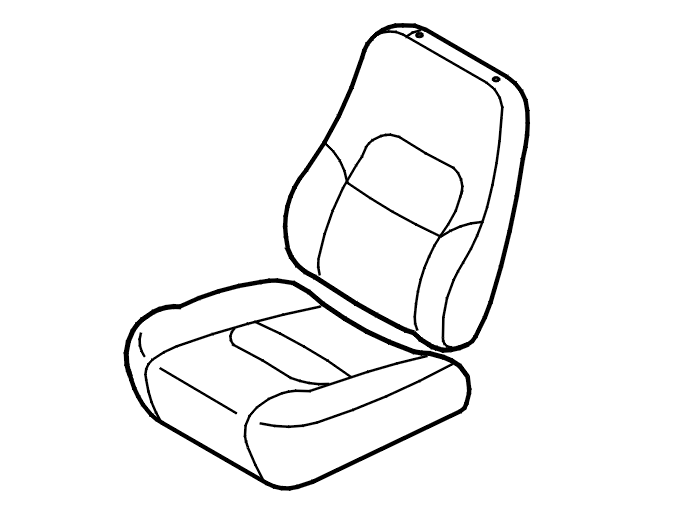

Fig 1: Identifying Different Types Of Foam Filling (5 Of 5)
GLL102376Courtesy of VOLVO CARS OF NORTH AMERICA.
