Replacing gear

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

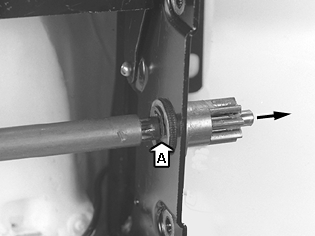

Fig 1: Identifying Snap Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

snap ring (A).
drive shaft.
Release the gear shaft by pushing the drive shaft towards it.

Angle out and remove the shaft.

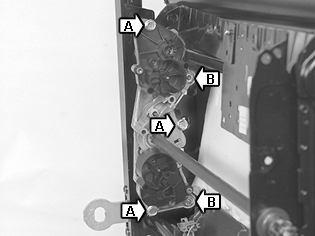

Fig 2: Identifying Screws And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

two screws (A).
two nuts (B) and (D).

Install:

In reverse order.
