Removing the potentiometer

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Set the seat height adjustment to its uppermost position.

Remove the seat from the car according to Lifting the power seat in and out .

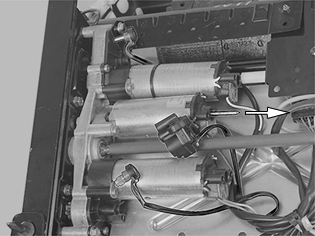

Fig 1: Identifying Potentiometer, Connectors, And Wiring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unclip the cover.

Pull out the potentiometer.

Disconnect the connectors and wiring.

Install:

In reverse order.

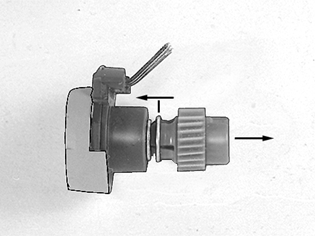

Fig 2: Identifying Potentiometer Gear And Snap Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

If the potentiometer gas a fixed gear either reuse the gear or order a new on separately.

Remove the snap ring from the gear on the potentiometer.
