Replacing the micro-switch for backrest folding: Removal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

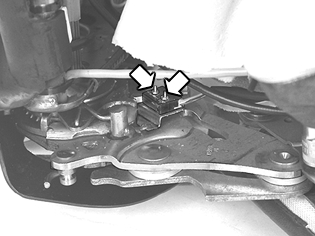

Fig 1: Identifying Micro-Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Check the location of the micro-switch before removing it.

Fig 2: Identifying Micro-Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut of the tie strap.

Remove the micro-switch from the seat.

Disconnect the connector.

Replace the micro-switch.

Install in reverse order.
