Removing sun visor, roof lining

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Interior Lighting And Sun Visor Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

2 screws
lining fixing by breaking with a flat screwdriver

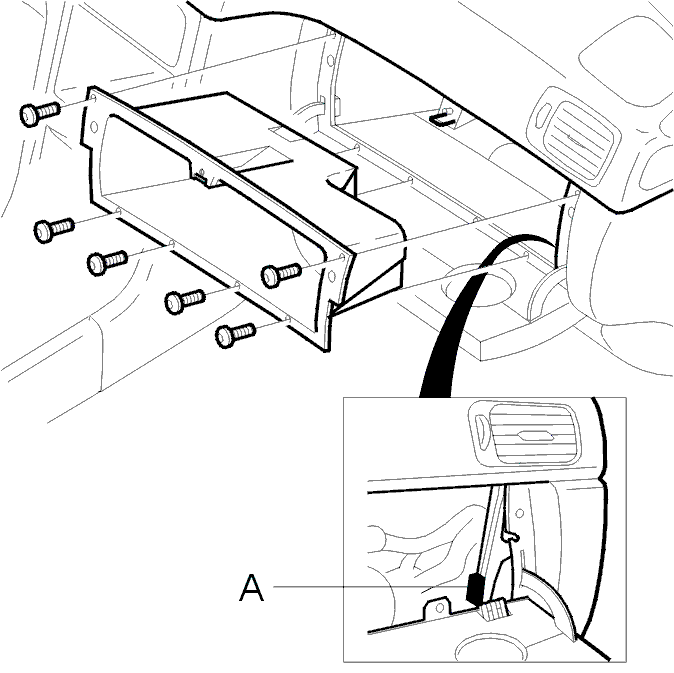

Fig 2: Identifying Glovebox And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: If sun visor and wiring are fault-free, cut the wiring at a suitable place so a 2-pin connector can be installed.

Remove:

A-pillar panel as described in Replacing A panel
6 screws from glovebox and lift out

NOTE:

Left sun visor: Remove sound wall under steering wheel to reach wiring.

Remove connector from sun visor.

Cut wiring between sun visor and connector (A).

HINT: Let wiring which is tightly wound in cable harness remain there.

Remove sun visor.
