Removing A panel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

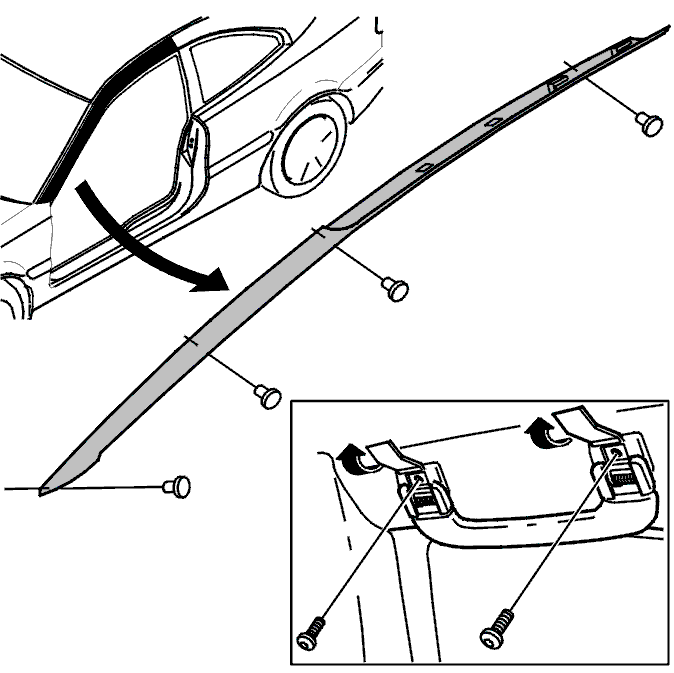

Fig 1: Identifying A Panel Clips And Courtesy Handle Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

cover on courtesy handle.
2 screws on courtesy handle.

Push gently on base of handle and at same time pull downwards/towards inside of vehicle.

Remove panel from 4 clips.

CAUTION:

Replace clips with new ones if they break.
