Rear seats: Backrest

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

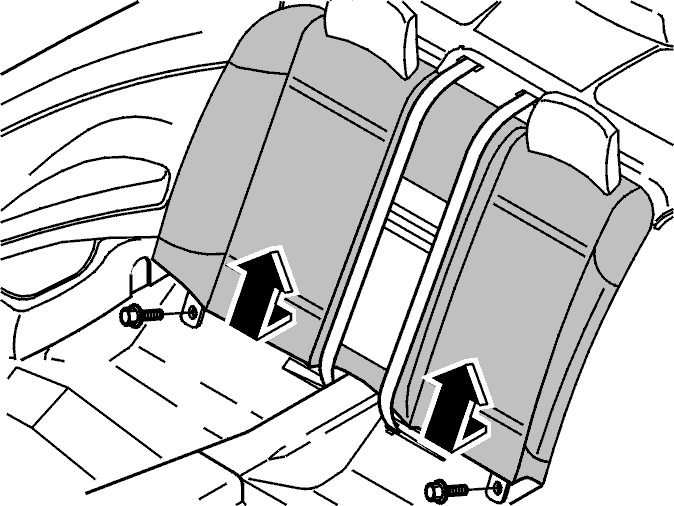

Fig 1: Identifying Backrest Screws
GLL127370Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws at the bottom.

Pull the seat belts around the backrest.

To remove the seat belt, see Rear seat belts .
