Squeaking from glove compartment lighting

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

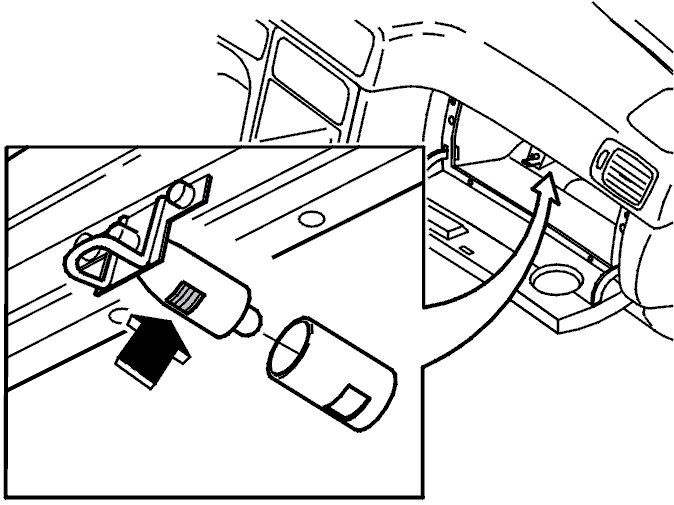

Fig 1: Identifying Glove Compartment Lamp Cover
GLL127382Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the glove compartment lamp cover.

Apply grease, P/N. 1161417- 9 on the return spring for the glove compartment lamp switch.
