Noise from glove compartment lid stop arm

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

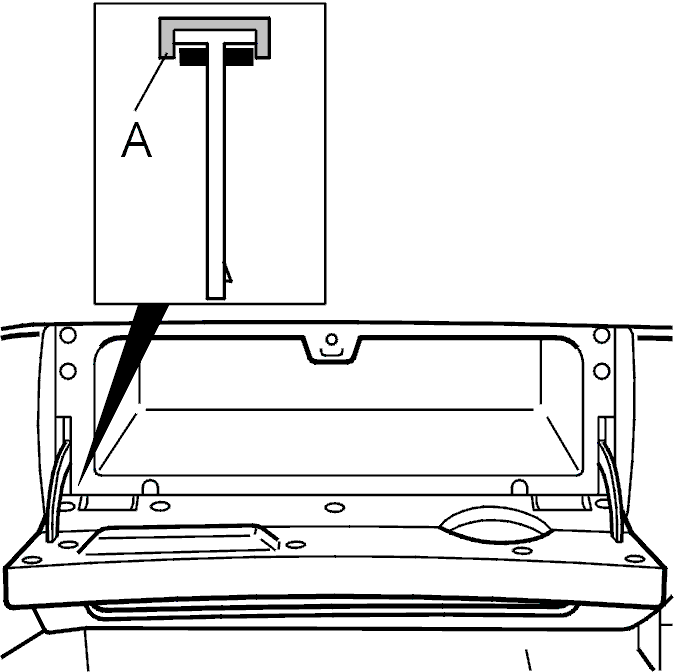

Fig 1: Identifying Piece Of Tape On Stop Arm Nearest Center Console
GLL127380Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a piece of tape (A), P/N 679904- 3 on the stop arm nearest the center console as illustrated above.

The tape should also cover the sides of the stop.
