Noise from glove compartment lid due to excessive play at lock

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

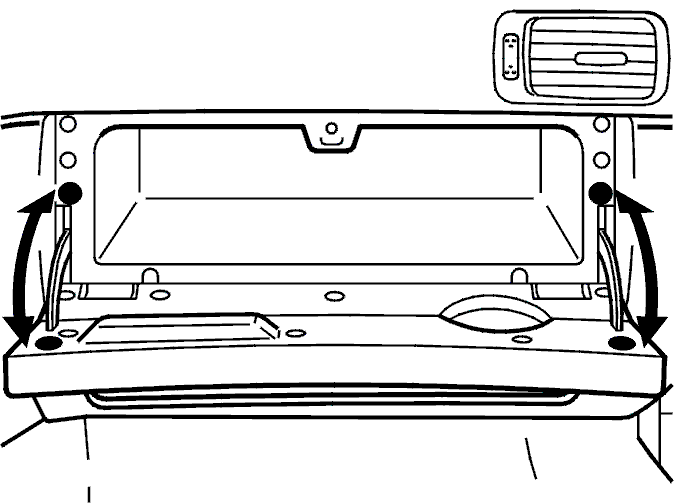

Fig 1: Identifying Pieces Of Tape On Cover Facing Rubber Stops
GLL127379Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut 2 pieces of tape (10x10 mm), P/N 6812838-8.

Install pieces of tape on the cover facing the rubber stops

HINT: The rubber stops indicate the markings in the cover which can be used as markings for locating the pieces of tape.
