Replacing WHIPS

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

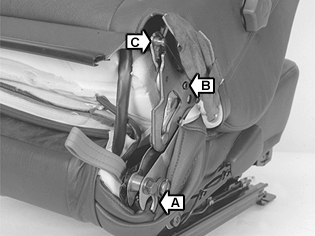

Fig 1: Identifying Folding Mechanism, Indicator, And Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

If indicator B is not intact:

Screw the backrest adjustment as far forwards as possible.

Release folding mechanism A. Fold the backrest forward.

Disconnect spring C.

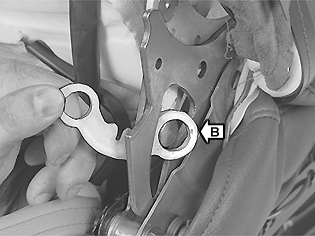

Fig 2: Identifying Indicator Pin And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the indicator pin or its remains
one nut on each side.

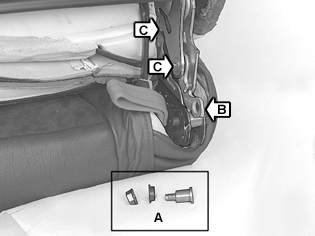

Fig 3: Identifying Shaft/Screw And Sliding Washer

Courtesy of VOLVO CARS OF NORTH AMERICA.

one shaft / screw on each side
sliding washer.

Use a screwdriver to lift apart the mounting at C in order to angle out segment B.

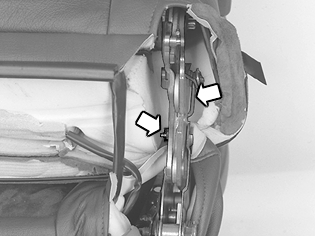

Fig 4: Identifying Segment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the segment: Twist it and angle it out.

NOTE:

The segment can only be removed when it is in one particular position.

Replace the segment.
