Removing upholstery from the foam filling

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

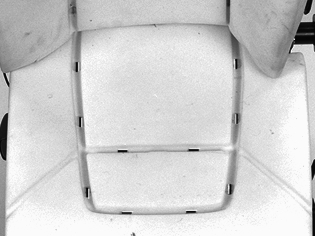

Fig 1: Identifying Half Moon Clips From Each Front-Rear Channel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the half moon clips on the front-rear channels.

Fig 2: Identifying Half Moon Clips From Each Front-Rear Channel

Courtesy of VOLVO CARS OF NORTH AMERICA.

the half moon clips on the lateral channel.

Replace the upholstery.
