Seat cushion heater pad

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Replacing the seat cushion heater pad

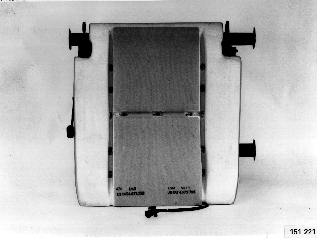

Fig 1: Identifying Seat Cushion Heater Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the upholstery according to Seat cushion upholstery .
the heater pad.
Use a hot-air gun to warm the adhesive. Pull off the heater pad.

Disconnect the wiring and the connector.

Install:

the new heater pad.
WARNING:
The new heater pad must not, under any circumstances, be glued on top of the old one.
the upholstery according to Installation .
the seat in the car.
