Removing the SIPS bag control module connector

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Take care when separating the connectors.

If the connector breaks the whole cable harness must be replaced.

NOTE:

Always replace the clip if it has been removed.

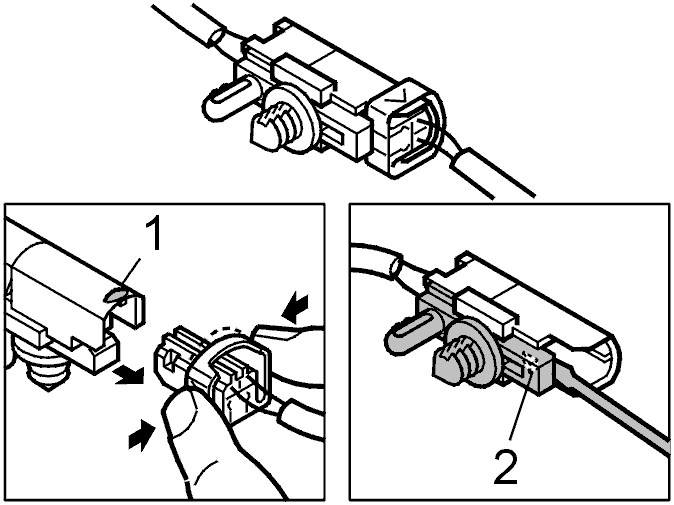

Fig 1: Identifying SIPS Bag Control Module Connector
GLL104086Courtesy of VOLVO CARS OF NORTH AMERICA.

Press on the side so that the bag goes over the edge (1).

Separate the connector.

Bend the clip at the front edge (2).

Move the clip backwards.

Remove clip.
