Removing the front seat SIPS airbag

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fold out and remove the protective pad on the side of the seat that contains the SIPS airbag.

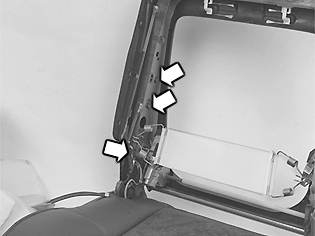

Fig 1: Identifying SIPS Bag Screws Inside Of Backrest Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two screws that hold the SIPS airbag to the inside of the backrest frame.
tie straps.
steel clip.

Fig 2: Identifying Spacer, Screws, And Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector clip.

Cut the tie strap.

Expose the wiring.

Replace the SIPS airbag.
