Replacing protective pad

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

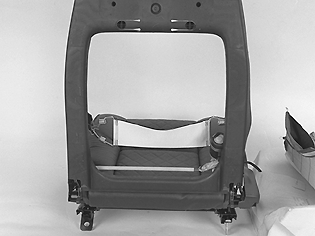

Fig 1: Identifying Protective Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out Backrest upholstery .

Fold out and release the protective pad by the backrest adjustment and lumber adjustment knob.

Press out the clip in the rear of the protective pad.

Replace protective pad.

Install:

In reverse order.
