Removing lumbar support strap

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest upholstery according to Removing the lower section of the backrest upholstery .

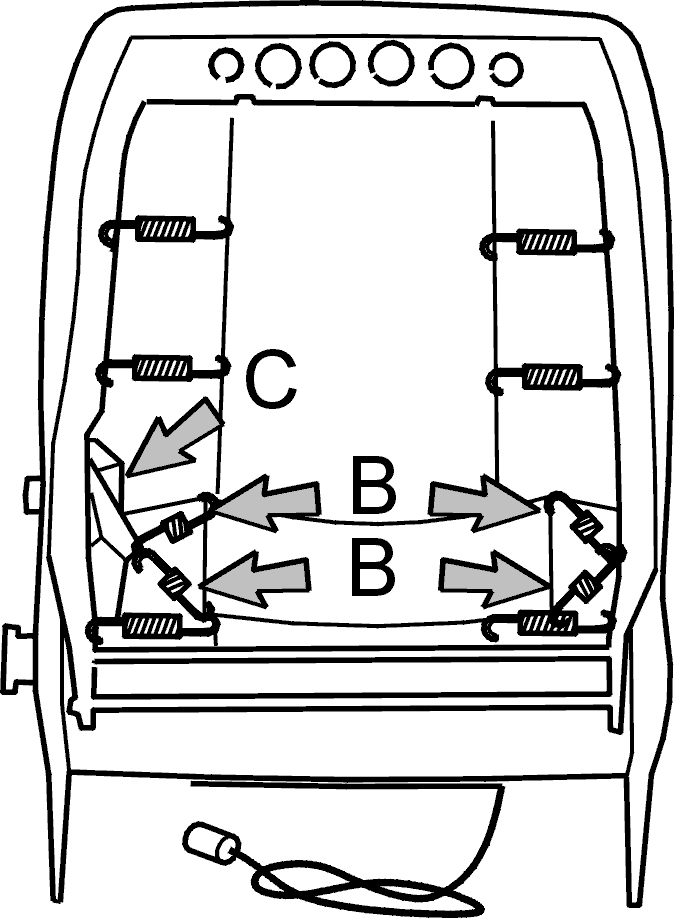

Fig 1: Identifying Springs And Mountings
GLL127311Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the springs from mountings (B) in the backrest frame and lumber support adjustment mechanism.

Replace damaged components.

Install:

In reverse order.
