Replacing lumbar support

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Remove:

the backrest upholstery according to Removing the lower section of the backrest upholstery .
the lumbar support strap according to Lumber support strap .

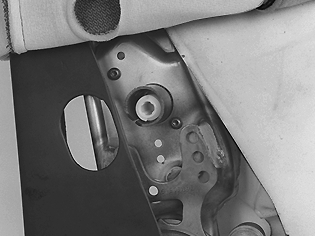

Fig 1: Identifying Mechanism And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove two screws from the mechanism.

Press the mechanism inwards.

Unhook the spring from the backrest frame.

Replace damaged components.

Install:

In reverse order.
