Removing seat belt buckle

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

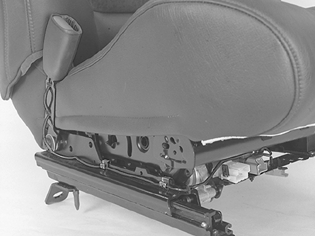

Fig 1: Identifying Seat Belt Buckle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

connectors (under the front edge of the seat).
the seat from car according to Lifting mechanical seats in and out .
the seat from car according to Lifting the power seat in and out .
1 screw to the seat belt buckle.
the clip for the wiring.

Install:

In reverse order.

Tighten the screw to 48 Nm .
