Removing spring tensioner

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Remove:

the seat from the car according to Lifting mechanical seats in and out .

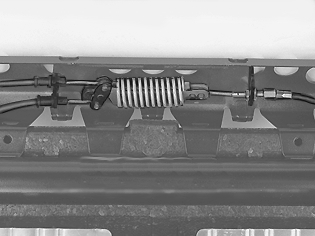

Fig 1: Identifying Cable And Tensioner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the tensioner on the cable.

Twist and pull the cable back.

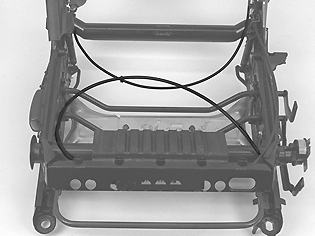

Fig 2: Identifying Cable And Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the cable from the mountings.

Twist the cable against the spring

Replace the cable.

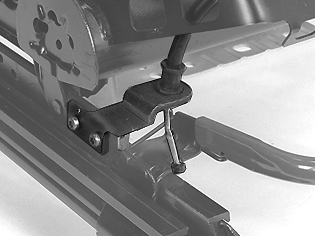

Fig 3: Identifying Cable Connection

Courtesy of VOLVO CARS OF NORTH AMERICA.

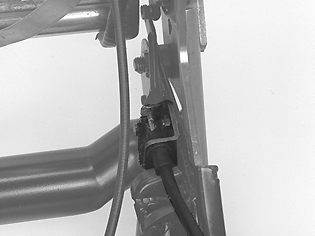

Fig 4: Identifying Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.
