Removing the mechanism

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the micro-switch according to Replacing the backrest micro-switch  (power seat only).

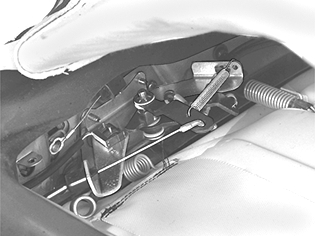

Fig 1: Identifying Cables
GLL126517Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace cables.

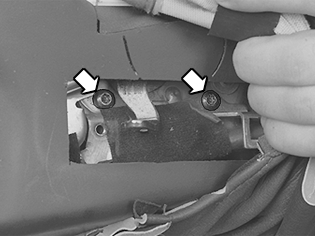

Fig 2: Identifying Mechanism And Screws
GLL126524Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove upholstery as illustrated above.

Remove the two screws.

Remove the mechanism.

Install:

In reverse order.
