Removing the cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

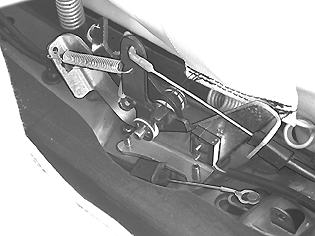

Fig 1: Identifying Folding Mechanism And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catch securing the cable in the tilt mechanism.

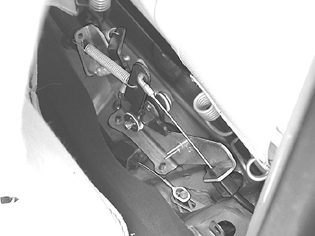

Fig 2: Identifying Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Check the routing of the cable in the backrest before removing it. This is so that it can be installed in the same way.

Fig 3: Identifying Tilt Mechanism And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the cable from the tilt mechanism.

Unhook the cable ends from seat. Replace the cable.

Install:

In reverse order.
