Removing tilt mechanism

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

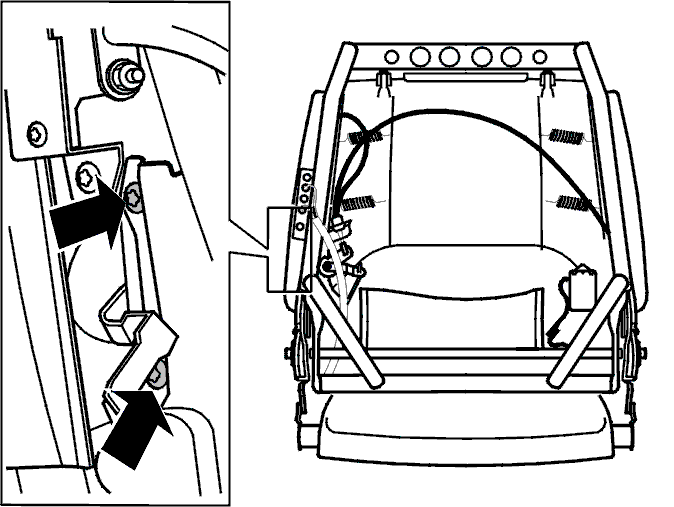

Fig 1: Identifying Screws Securing Tilt Mechanism In Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

two screws securing tilt mechanism in the seat.
the switch from the folding mechanism, see Removing .
cable from tilt mechanism.

Replace tilt mechanism.

Assemble in reverse order.
