Removing cable
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

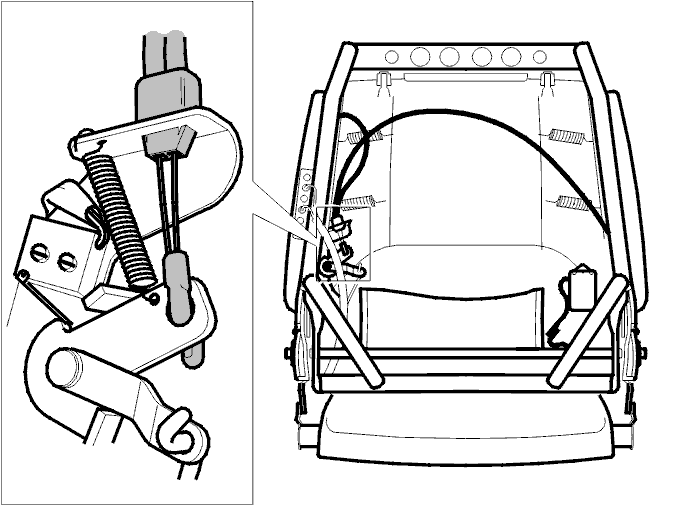

Press in the catch securing the cable in the folding mechanism.
CAUTION:
Check the routing of the cable in the backrest before removal in order to reinstall in the same way.
Disconnect the cable from the folding mechanism.
Unhook the cable ends from seat and replace the cable.
Assemble in reverse order.
