Replacing backrest upholstery: Removing: Preparations
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Make a note of radio code if anti-theft coded radio is installed.
Remove:
- battery negative lead
- seat from car according to: Replacing seat assembly .

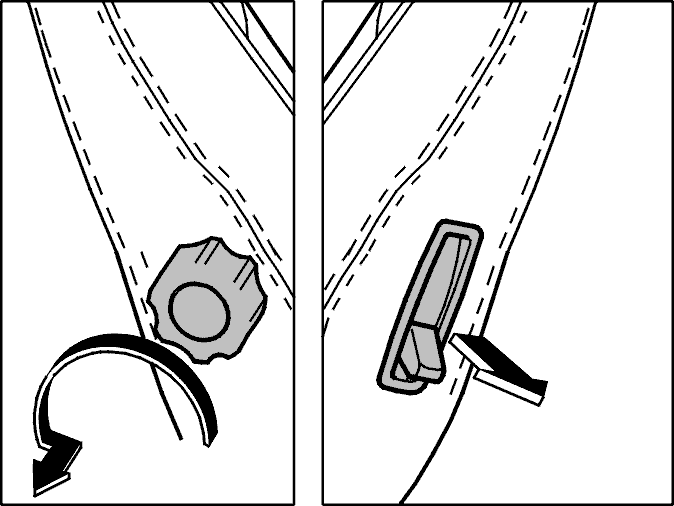

- lumbar support adjustment knob. Screw anti-clockwise until the knob stops. Continue screwing anti-clockwise and pull out hard.
- plastic cover for backrest release mechanism.
