Transferring components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

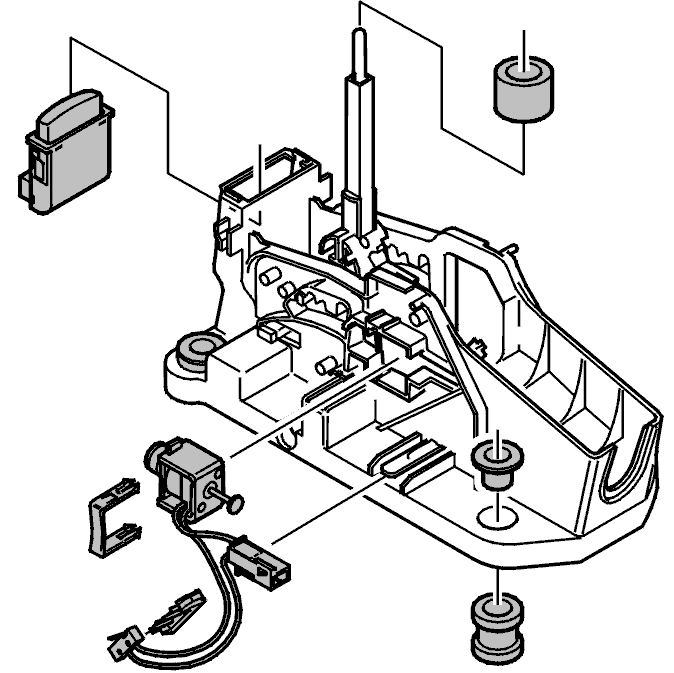

Fig 1: Identifying Rubber Bushings, Spacer Sleeves, Solenoid, Connector, Mode Selector Switch And Foam Rubber Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer the following components to the new gear selector assembly (replace any damaged components):

the rubber bushings and spacer sleeves
the solenoid and the connector
the mode selector switch
the foam rubber ring.
