Removing screws and the cross piece from the SIPS members

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

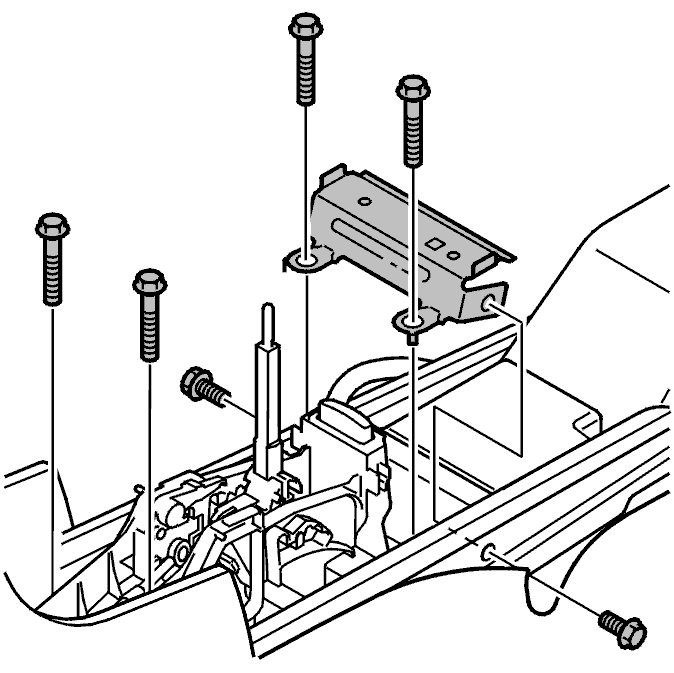

Fig 1: Identifying Cross Piece, Screws For Gear Selector Assembly & Side Screws
GLL125408Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the carpet out of the way on both sides.

Remove the screws and the cross piece.
