Fitting the subframe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

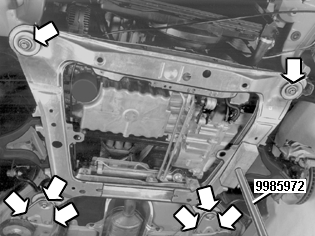

Fig 1: Identifying Engine Lift 9985972 And Subframe Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position engine lift 9985972 under the LH side of the subframe.

Press the subframe up against the bodywork, fitting the steering gear bolts into the subframe at the same time.

Fit new bolts (M14) in the subframe. Oil the threads. Tighten the bolts to 105 Nm . Fit the support plate bolts at the same time.

RH side

Press up the subframe. Remove the old bolts and fit new ones in the same way as on the LH side. Remove the engine lift.

Finally, tighten the four subframe bolts to 120° .

Tighten the support plate bolts to 50 Nm .
