Fitting subframe components
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

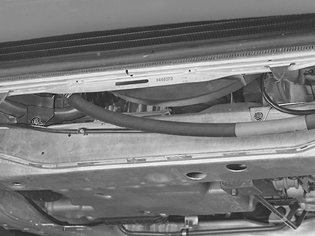

Fig 1: Identifying Cable Conduit On Subframe, Carbon Filter Canister, Bracket And Bolt For Ground Cable
Fit:
- the cable conduit on the subframe
- the carbon filter canister. Clamp the hoses on the subframe with cable ties. Hook the hoses on the subframe.
- the bracket and bolt for the ground cable.
