Fitting steering gear/subframe components
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

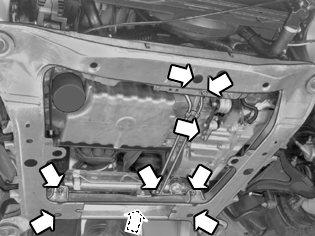

Fig 1: Identifying Locknuts, Steering Gear Bolt, Front Engine Pad Retaining Bolt, Torque Rod Attachment Bolts & Servo Oil Pipe Retaining Bolts
Fit:
- new locknuts and the steering gear bolt. Tighten to 50 Nm
- the front engine pad retaining bolt. Tighten to 50 Nm
- new torque rod attachment bolts. Tighten to 35 Nm + 40°
- the servo oil pipe retaining bolts.
