Install new input shaft seal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

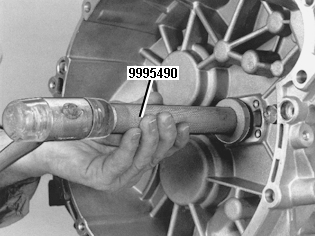

Fig 1: Identifying Drift 9995490

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate lip of the input shaft seal.
Use drift 9995490 .
Tap in input shaft seal until the drift contacts the transmission cover.
