Transmission, drive shaft seal replacement: Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

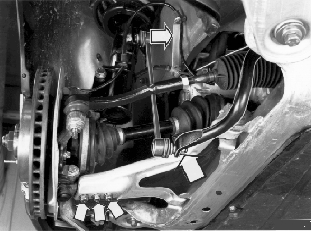

Fig 1: Identifying ABS Lead Bracket & Brake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Suspension arm to ball joint. Use new nuts.
NOTE:
Check that ball-joint seating in suspension arm is clean and free of grease.

Tighten nuts from inside and out to 18 Nm +120°.

, use a protractor 9512050 .

Apply rustproofing agent to area between ball joint, suspension arm and nuts correctly and precisely. Use rust inhibitor 1161432-8.

Link to anti-roll bar with new nut and tighten to 50 Nm .

Install:

Fig 2: Identifying Brake Line/ABS Cable Bracket, Wheel Arch Liner Plastic Nuts & Torx Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bracket for brake pipe and ABS cable.

Check and top up oil in transmission as required.

Tighten to 35 Nm .

Install:

Fig 3: Identifying Crosswise Tightening Pattern

Courtesy of VOLVO CARS OF NORTH AMERICA.

Wheel. Ensure that the brake disk and wheel rim mating surfaces are clean. Grease hub center locating pin in front of pad using rustproofing agent 1161405-4. Fit bolts but do not tighten. Install bolts handtight, then tighten diagonally to 110 Nm . When tightening with socket wrench, use torque sleeve 1158147-7.
