Install new driveshaft seal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

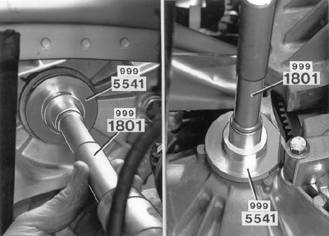

Fig 1: Identifying Driveshaft Seal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a small amount of grease to sealing lip.
Use drift 9995541 and handle 9991801 .

NOTE:

Do not use the older type of drift 999 5478.

LH side:

Put the side of the drift marked 'M56' against the driveshaft seal.

RH side:

Put the side of the drift marked 'M56' against the driveshaft seal, and turn as shown above in the picture on right.

Tap driveshaft seal in gently until drift is touching transmission casing.
