Installing the transmission cable on the transmission
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

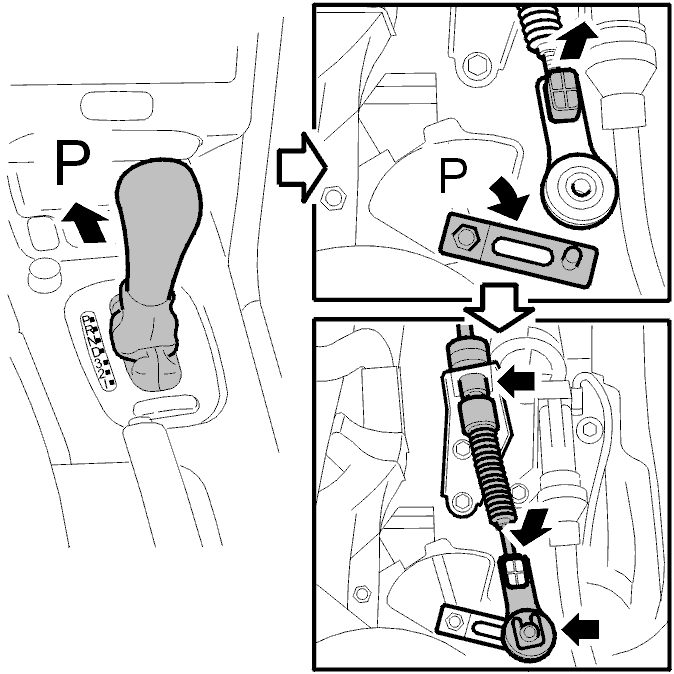

Move the gear selector to position P.
Turn the lever on the transmission to position P (the foremost position).
Check that P position is engaged: Try to roll the car.
Detach the lock tab on the cable. Pull it straight up slightly. Use flat nosed pliers.
Install the cable in the bracket and on the lever on the transmission. Fold the locking down.
Press the locking tab into place on the cable. Check the gear positions.
